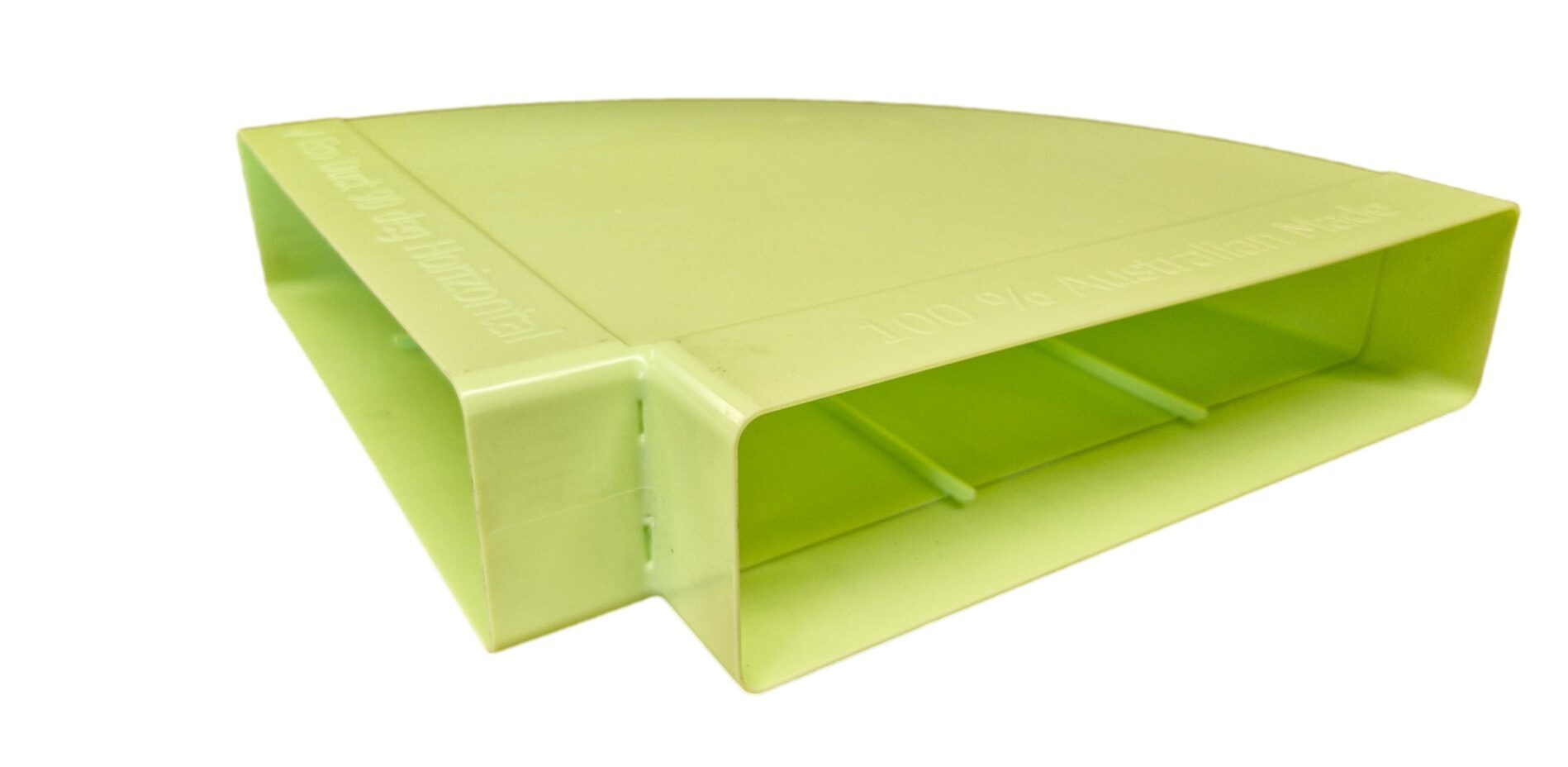

The Ecoduct 300x70mm Horizontal 90° Bend is designed to direct airflow around tight angles, making it ideal for installations where ceiling space is limited.
Its large circular radius promotes smooth airflow around tight bends, helping to minimise pressure loss and maintain system efficiency. Featuring 40mm of contact surface with the duct, a snug-fit design, and extended lock-in tabs, this bend ensures a fast, secure, and reliable connection.
For best results, apply a thin bead of our Greenstar-compliant mastic to achieve an airtight seal, slide the duct under the tabs, and fix in place using 25mm sheet metal screws. This method delivers both time and cost efficiency on site.
Manufactured in Geelong, Australia, the ECO300HOR90 is engineered to give peak performance in PVC apartment ventilation systems. It not only meets, but exceeds all Australian smoke and flame standards, and is 100% Australian made and owned.
