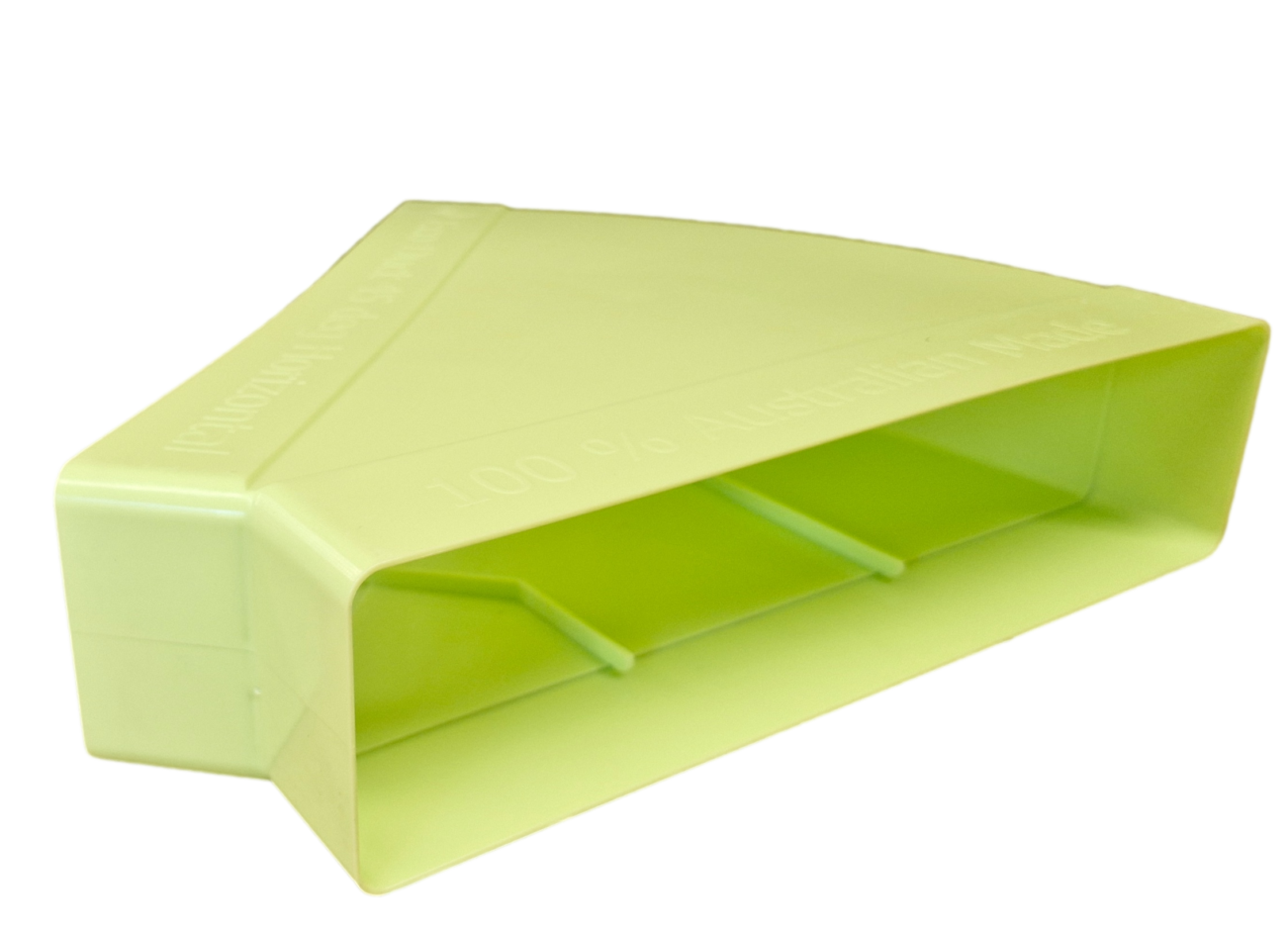

The Ecoduct 300x70mm Horizontal 45° Bend is designed to allow gentle redirection of airflow, helping to minimise pressure loss and maintain system efficiency.
Its design enables smooth, sweeping bends to navigate around other services and obstructions. Featuring 40mm of contact surface with the duct, a snug-fit design, and extended lock-in tabs, this bend ensures a fast, secure, and reliable connection.
For best results, apply a thin bead of Greenstar-compliant mastic to achieve an airtight seal, slide the duct under the tabs, and fix in place using 25mm sheet metal screws. This method delivers both time and cost efficiency on site.
Manufactured in Australia, the ECO300HOR45, engineered for peak performance in PVC ventilation systems, meets and exceeds all Australian smoke and flame standards and is 100% Australian made and owned.
